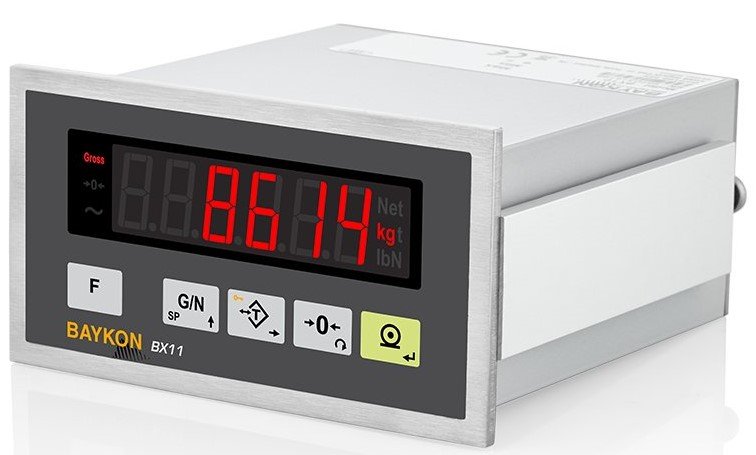

Weighing Indicator - Baykon BX - 11 Weighing Terminal
- Display: 6 digits, 7 segments, RED, 13.5 mm high
- Status annunciators: Gross, net, motion, centre of zero, unit
- Keyboard: 5-keys (function, GN, tare/clear, zero, print)
- Analogue input range: 0 mV to -18 mV (unipolar); -18 mV to +18 mV (bipolar)
- Resolution: Internal up to 16,000,000
- Analogue Programmable to 4 – 20 mA, 0 – 20 mA, 0 – 5 VDC or 0 – 10 VDC
- Digital outputs: 5 set points with relay contact output.
- Digital inputs: 4 inputs are programmable for zeroing, tare, clear, hold, peak, print, etc.
- Number of load cells: Up to 6 load cells - 350 ? or up to 18 load cells - 1100 ?
- Enclosure: Stainless steel front panel type, aluminum body, stainless steel rear panel
- Power requirement: 12 to 28 VDC max. 300 mA
| Sr No |
Model |
Capacity |
Readability |
Platform Size |
| 1 |
BX - 11 |
Selectable |
- |
- |
| 2 |
BX - 11 AN |
Selectable |
- |
- |
