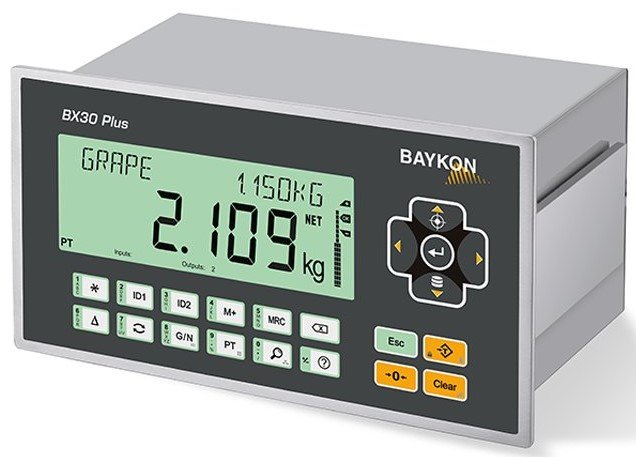

Weighing Indicator - Baykon BX - 30 Plus Weighing Indicator
Stainless steel, IP67 protected for wet, hygienic and harsh areas
Color selectable LCD display with alphanumeric info line
Bar graph to follow gross weight capacity
Display: Wide-angle LCD display with multicolor backlight, 6 digits 22 mm in height weight display and 16 digits 8 mm in height alphanumeric information display
Resolution: Internal up to 16,000,000
Analogue Input Range: -5 mV to +19 mV
Digital outputs: Relay contact outputs can be programmable independently to 9 different functions.
Digital inputs: Opto isolated 4 inputs programmable for zeroing, taring, print, fieldbus controlled input, etc.
Number of load cells: Up to 8 load cells - 350 ? or up to 27 load cells - 1100 ?
Power requirement: 100 - 240 VAC, 50/60 Hz or 12 - 28 VDC
